FarmQA Analytics: setting up Dashboards

After you've created your metric visualizations in FarmQA Analytics, you can load them into Dashboards. Dashboards are a collection of metric visualizations displayed on one screen that can be used to easily access relevant data related to your fields. Dashboards can be used to easily monitor scouting data as it comes in during the season, including creating Dashboards to track crop development and pest pressure. Check out the article below to learn more about creating and editing your Dashboards in FarmQA Analytics.

Creating a new Dashboard

• Log in to your FarmQA account from the web app if you aren't already.
• Click on Analytics then go to the Dashboard tab.

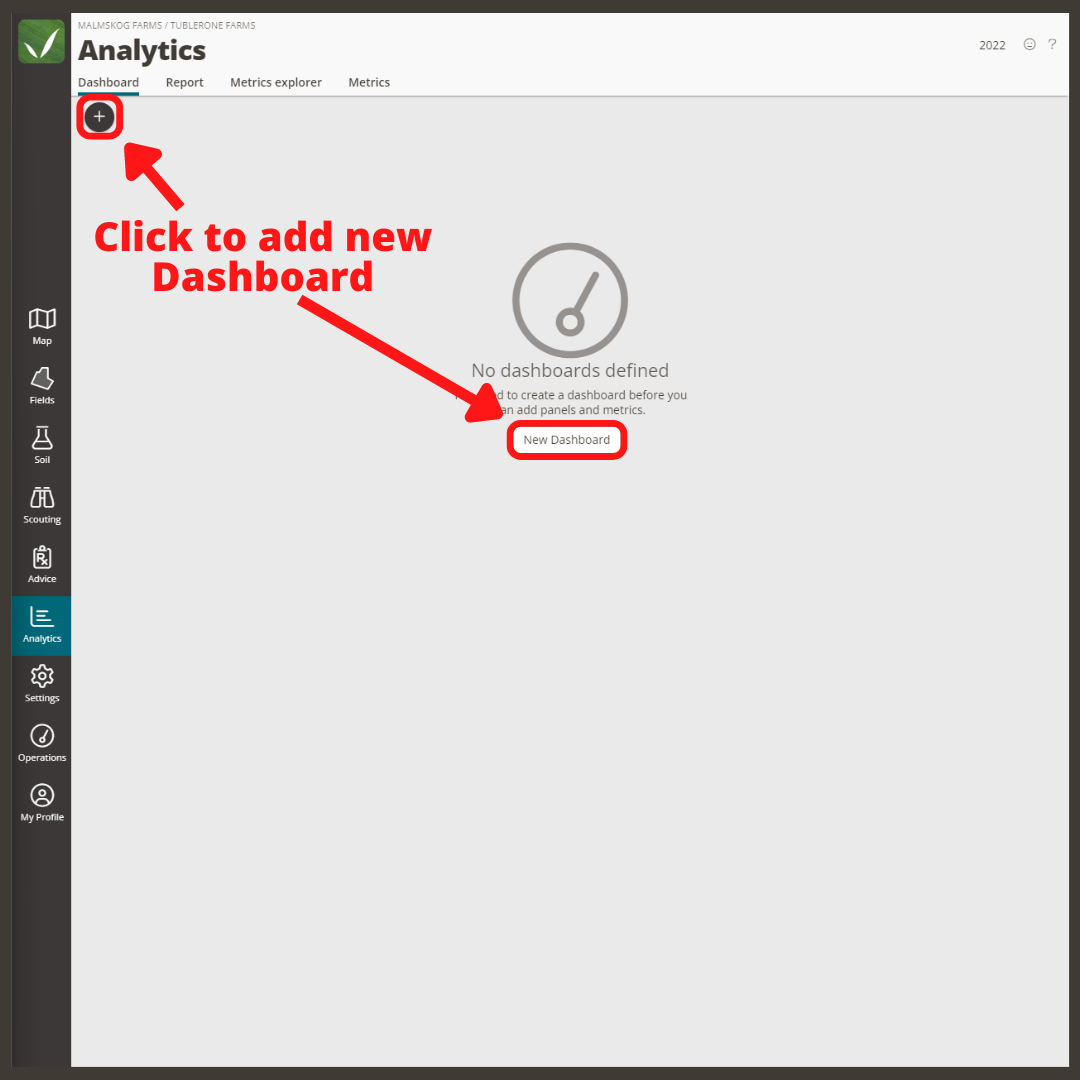

• Click the New Dashboard button to start making your desired Dashboard (pictured below).
  • NOTE: before you can create a Dashboard, you'll need to create some metric visualizations to load into your Dashboard. Read this article to learn more about creating metric visualizations.

• Start by naming your Dashboard by using the textbox in the upper left-hand corner of the screen.

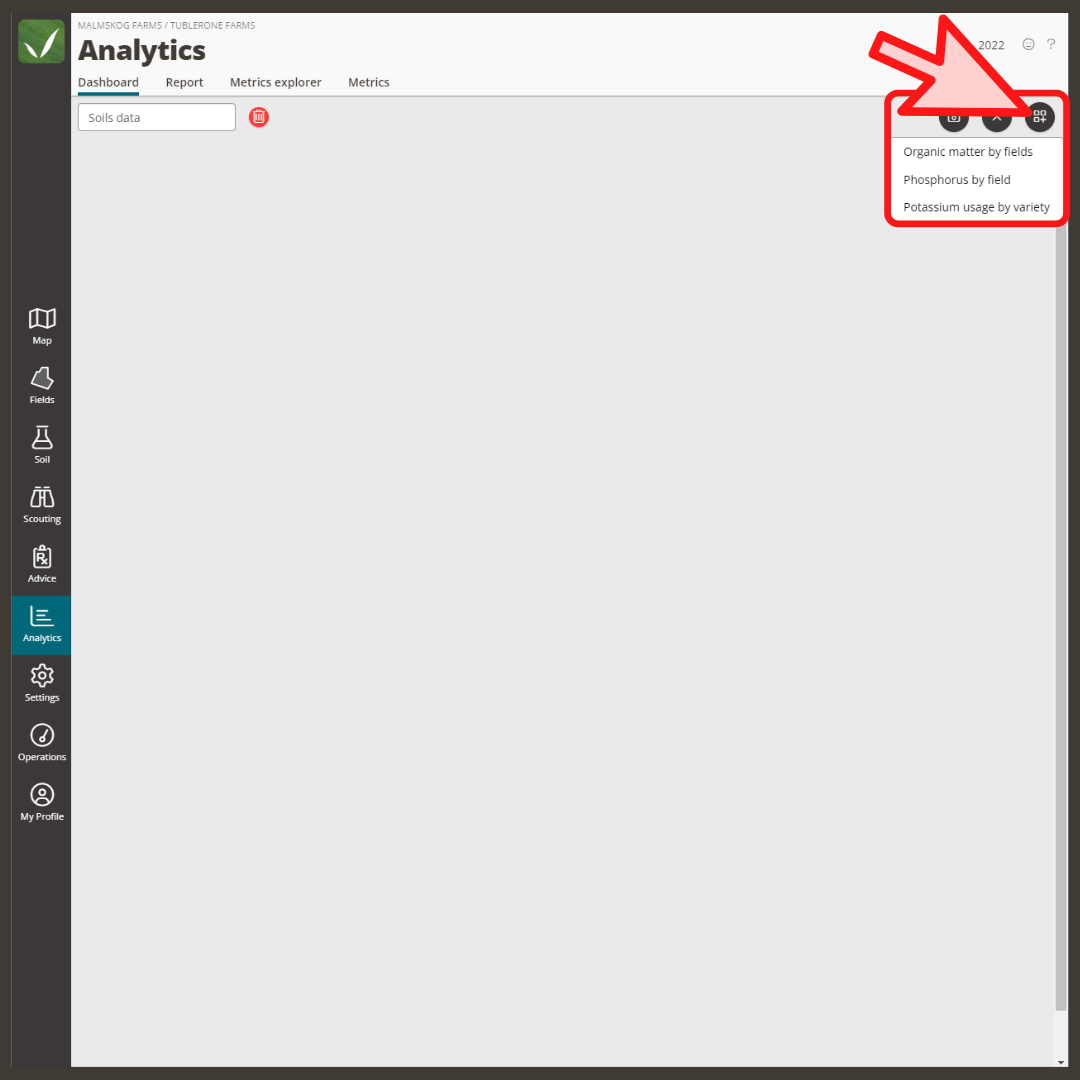

• In the upper right-hand corner of the screen, click the Add a new panel  button. From here, you'll be able to select one of your previously setup metric visualizations to add to your Dashboard (pictured below).

• When you add a panel to your Dashboard, it will save automatically.

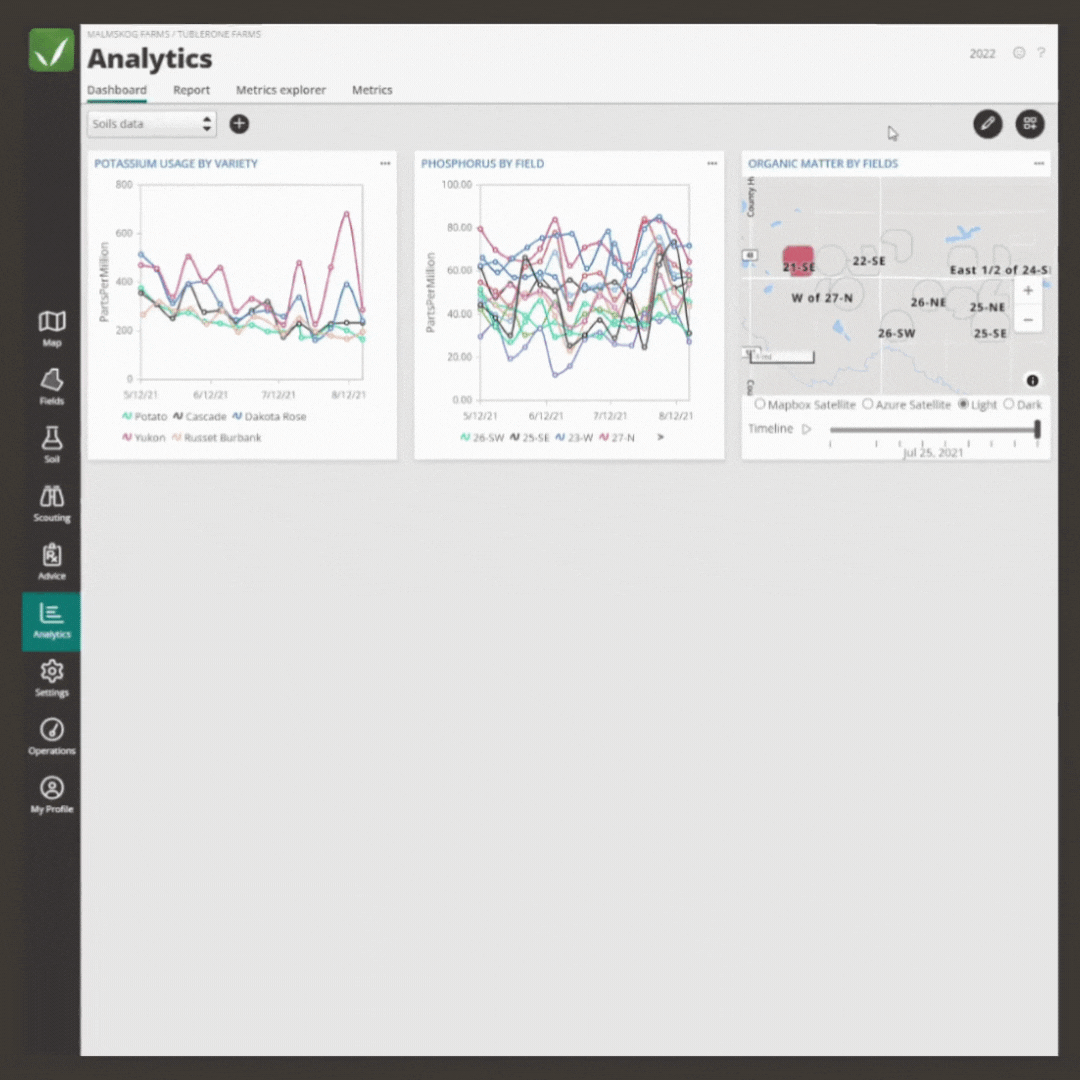

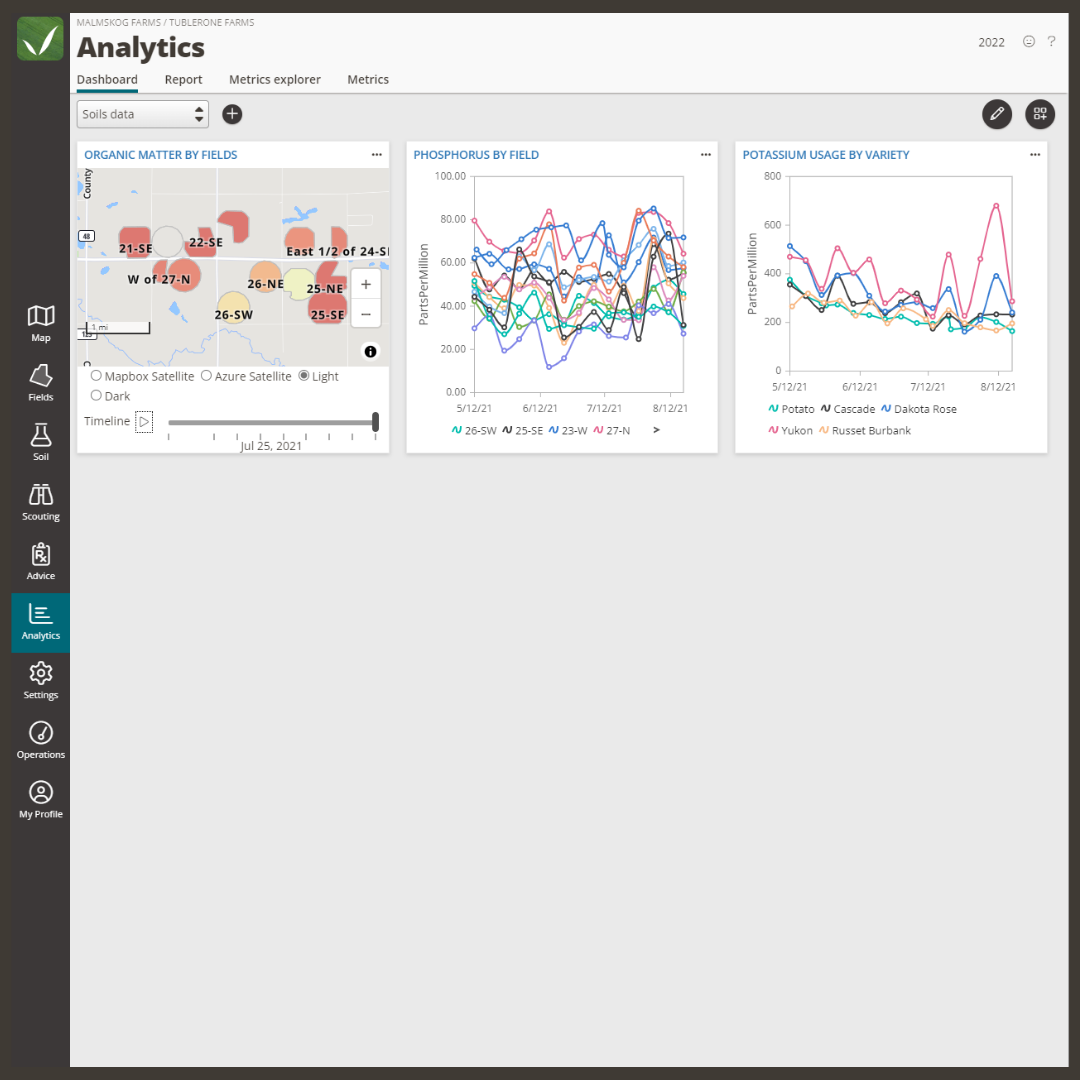

• Your completed Dashboard should look something like the one pictured below.

Editing/deleting a Dashboard

• Log in to your FarmQA account from the web app if you aren't already.
• Click on Analytics  then go to the Dashboard tab.
• Use the dropdown menu in the upper left-hand corner of the screen to click on the Dashboard you want to edit.

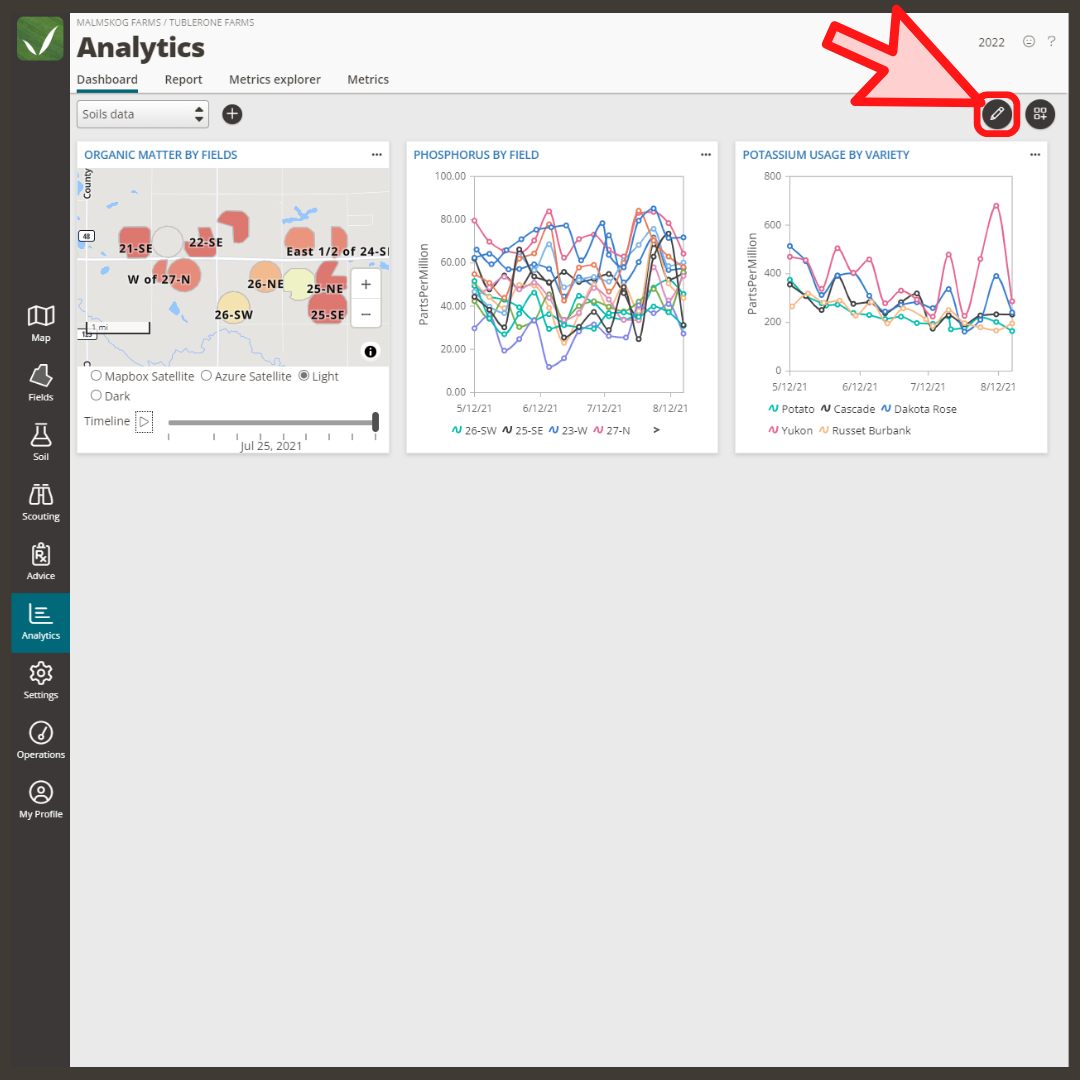

• Click on the Edit button in the upper right-hand corner of the screen in the upper right-hand corner to the screen to begin editing your Dashboard (pictured below).

• You can perform the following actions while you're editing a Dashboard:

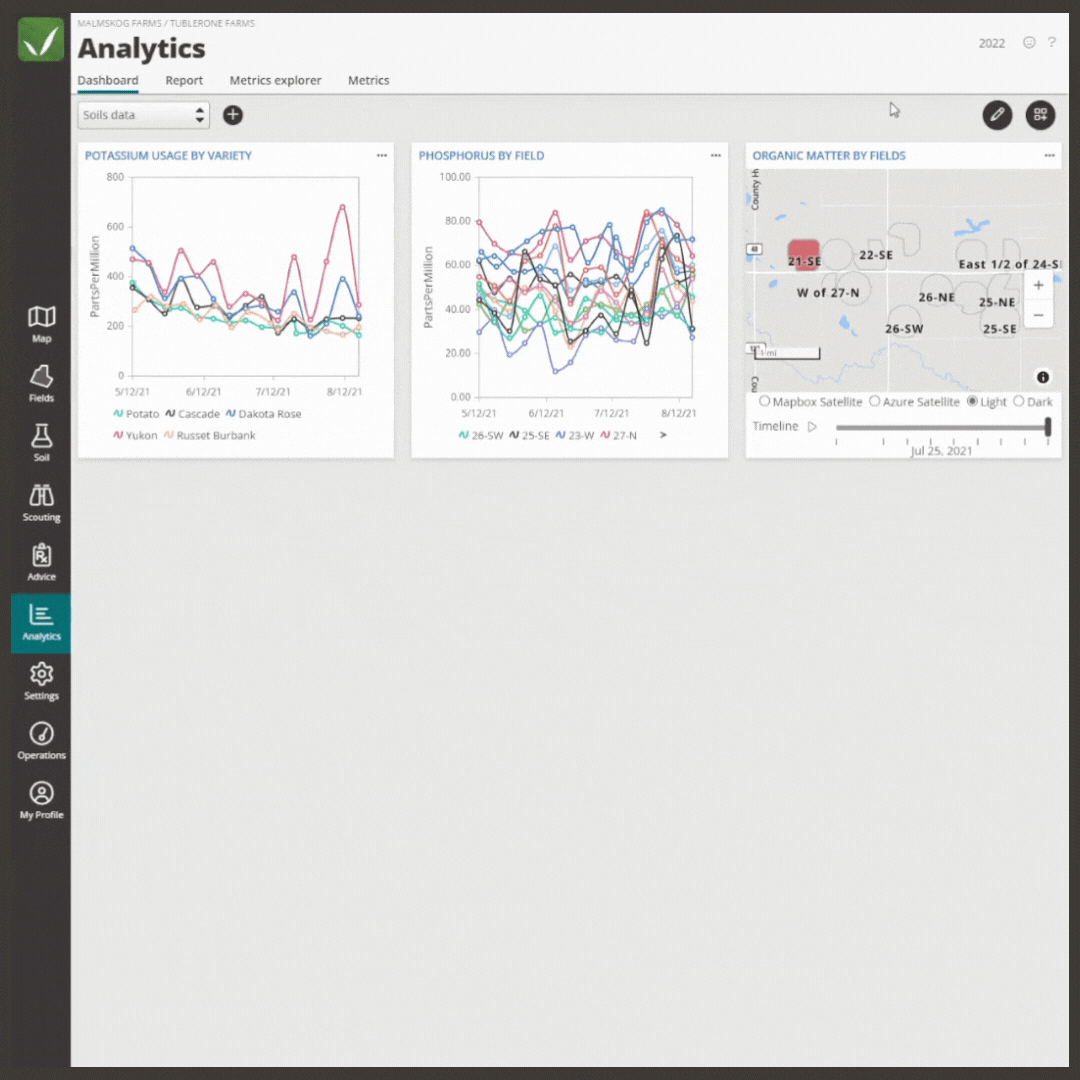

  • Move the position any of the panels in your Dashboard by dragging them (pictured below).

• • Click on the bottom right-hand corner of any panel and drag to resize it as you like         (pictured below).

• • Click the red Delete icon to delete the entire Dashboard.
  • If you're not happy with the changes you've made, click on Stop editing button to revert your Dashboard to how it looked at the time of your last save.
  • Click the Save button to save the changes to your Dashboard.

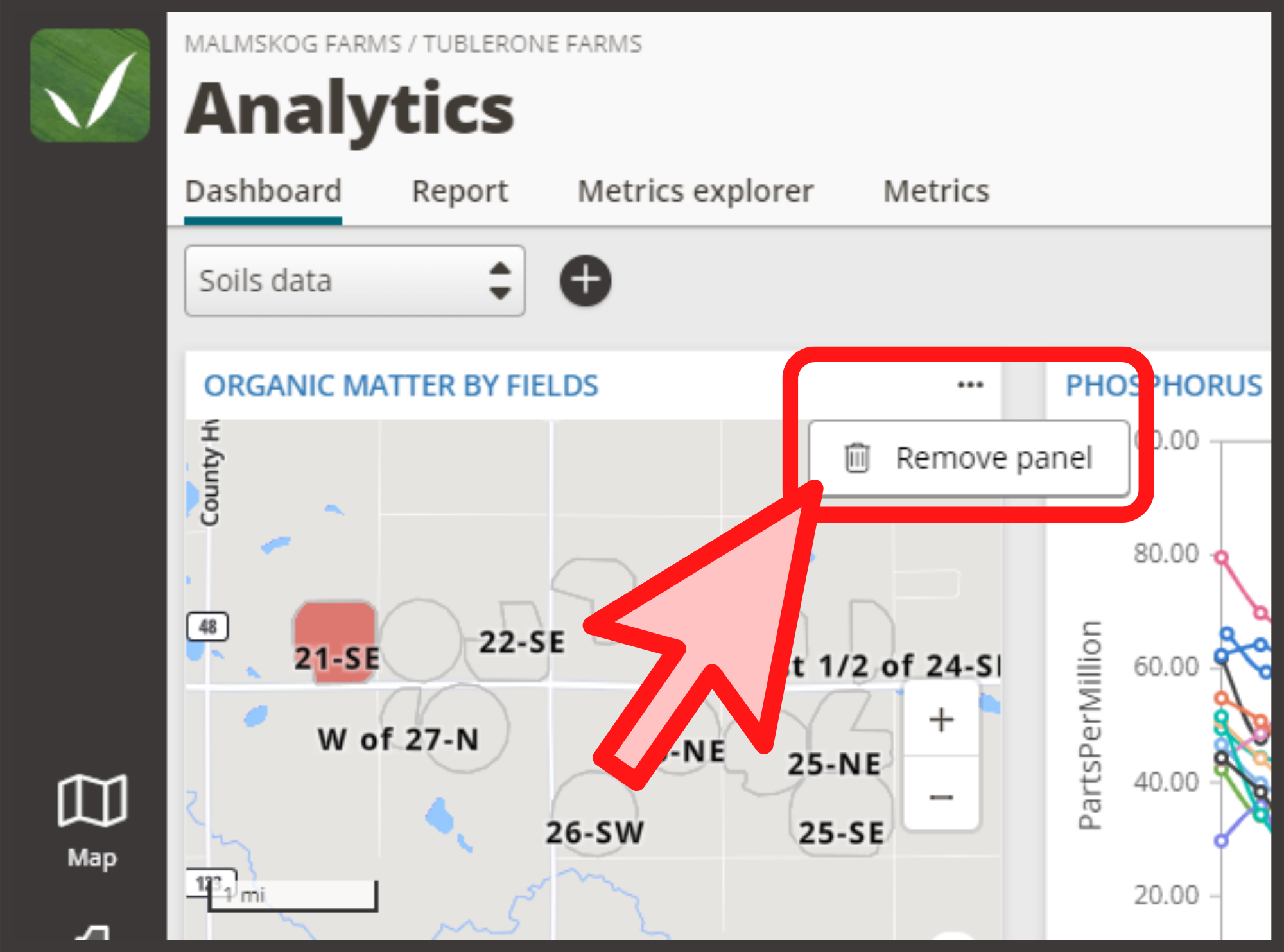

• You don't need to be in edit mode to remove a panel from a Dashboard. Just click the              More actions button in the upper right-hand corner of the panel you want to delete, then click Remove Panel (pictured below).

Please contact FarmQA Support with any further questions
