Users can create field boundaries within the FarmQA mobile app in addition to the FarmQA web app. This allows users to digitally map their farm and scout fields while they are on the go or away from their computer. Check out the instructions below to learn how to draw field boundaries in your FarmQA mobile app.
Driving a boundary with multiple polygons
Driving a boundary with a hole in it
Troubleshooting for driving field boundaries
Drawing a new field
- Log in to your FarmQA account from the mobile app.
- On the Fields > Map tab, click the Add and then click the New Field button to add a field.
- NOTE: If the Add button is disabled, check that you are online. Then verify that you have an active growing season and that a scouting template has been assigned to at least one crop. For more information on assigning a template to a crop, see the step-by-step instructions here.
- The App is now in create field mode. The Question mark button in the upper right-hand side of the screen will display what mode of the drawing tools you are in along with instructions for each.
- Adjust the map to the right location and zoom level.
- Select a polygon or circle drawing tool that best suits the field boundary.
- Tap the corners of a field or drag your finger around the boundary to create the shape. Complete the shape by clicking on the first point again.
- NOTE: You can remove the in-progress shape and start over by clicking the close box.
- Click Add field button at the bottom when you're done drawing the shape.
- Enter the Field name and Crop for the field on the next page.
- NOTE: To add additional crops to the drop-down list, see this article on how to add crops.
- Click the Add field button again after all information is added. The newly created field will now be visible on the Map tab.
- NOTE: Fields can also be created on a computer within the FarmQA web app by following these instructions.
Creating Multi-polygon fields
- Follow the instructions in the section above to create your initial field boundary.

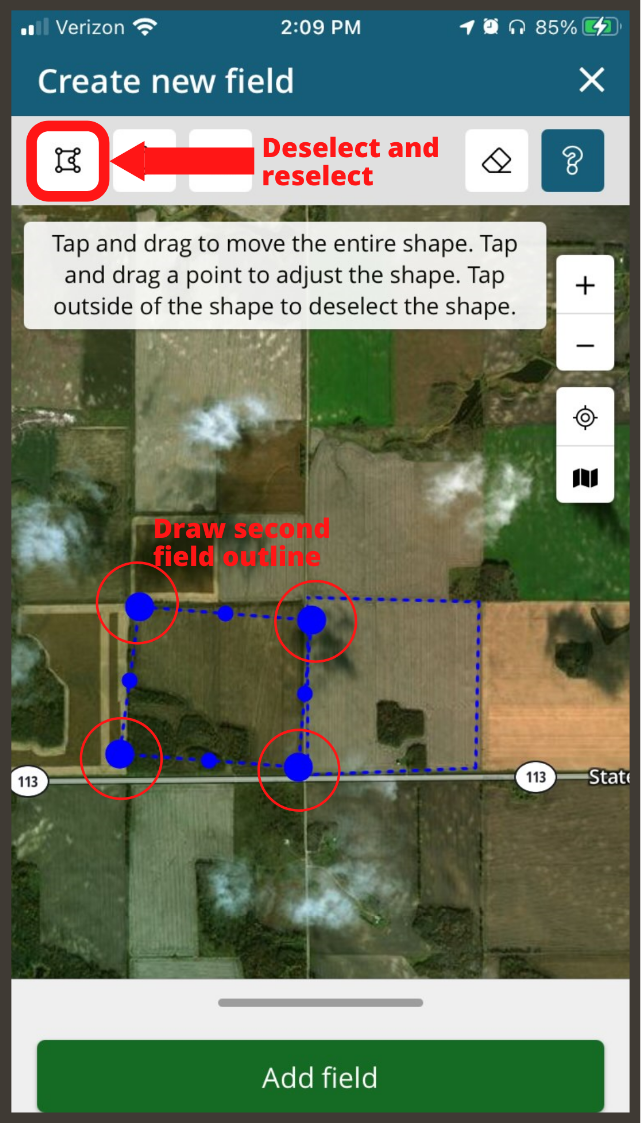

- Before clicking Add field, select the polygon tool again (see below)
- Draw a second shape and click the first vertice again to close it.
- NOTE: the boundaries cannot overlap each other.
- Repeat this process for more complex shapes
- Click Add field when completed.
Driving a field boundary
- Log in to your FarmQA account from the mobile app.
- Click the blue Add button at bottom right-hand corner of the screen, then select New field .
- Complete the following steps (pictured below):
- Click the Drive icon.
- Click the Record button when you've reached your starting location and are ready to start driving.

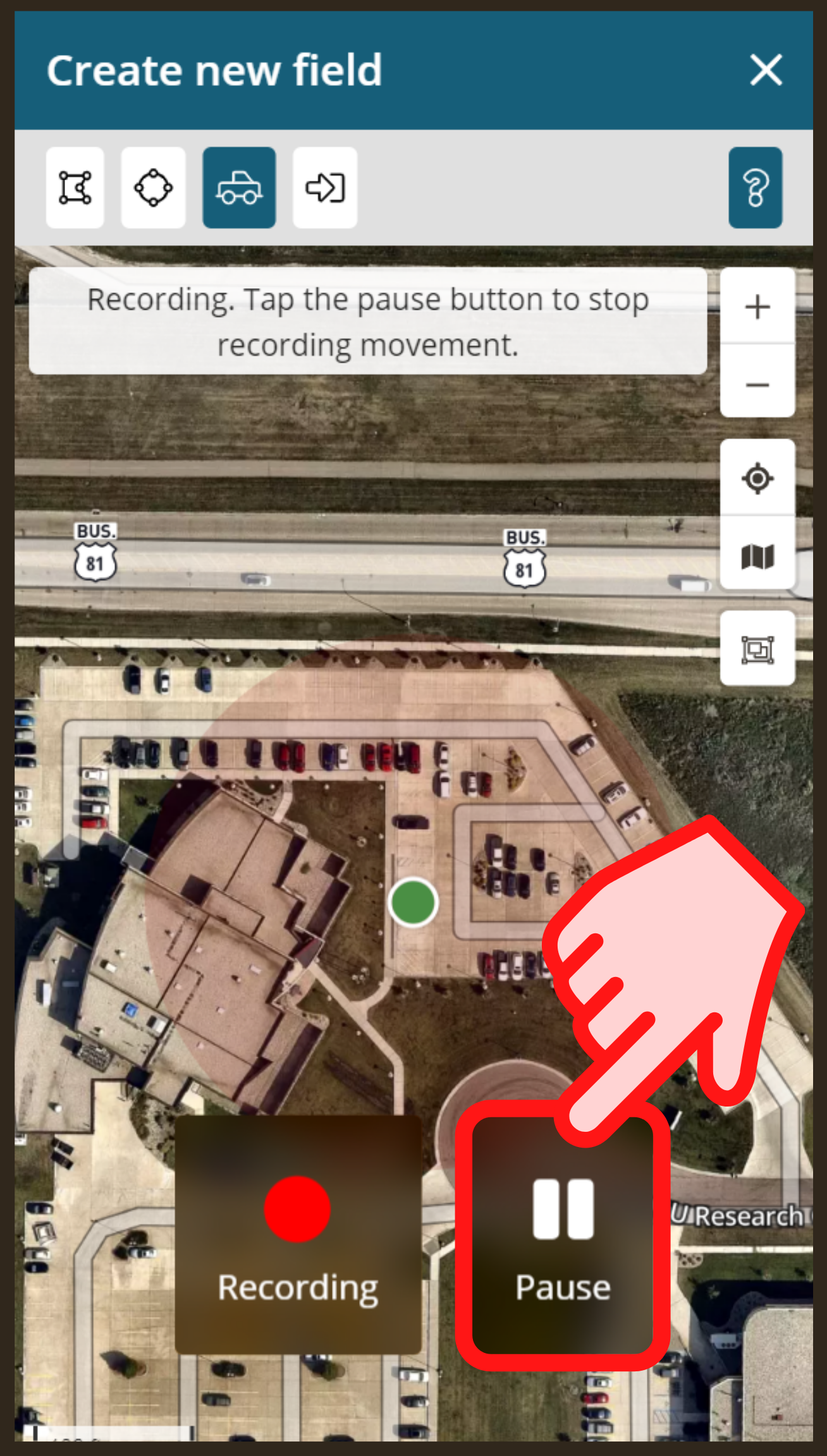

- Drive your boundary. As you drive, a blue dashed line will be drawn to show you the boundary you have created. When you're done, press the Pause button.

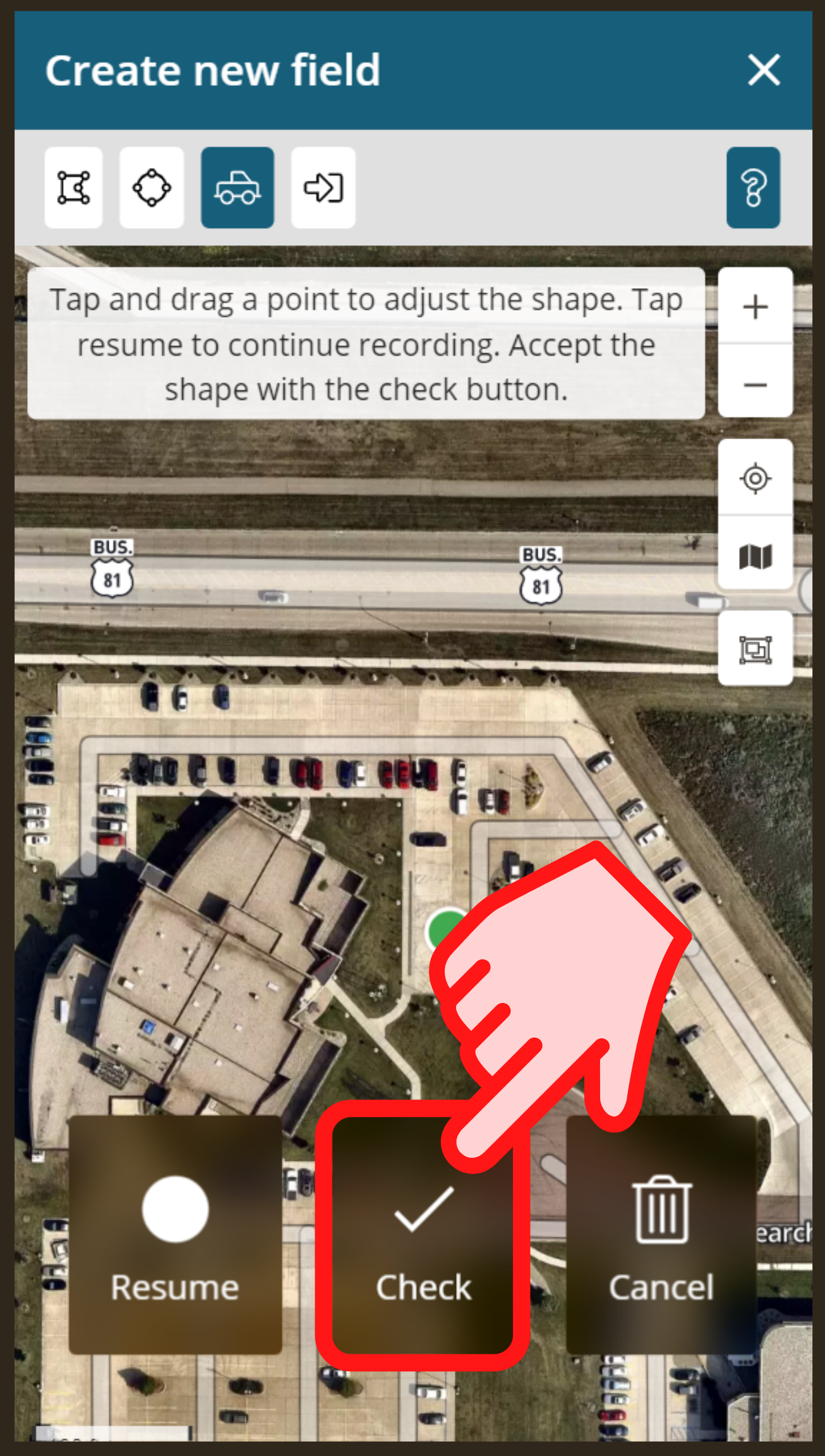

4. Click the Check button at the bottom of the screen if your field boundary looks correct.
5. Open the Add field menu at the bottom of the screen. Fill in the Field name and Crop fields and click the Add field button at the bottom of the screen to finish.
6. Your new field has been added to your FarmQA account.

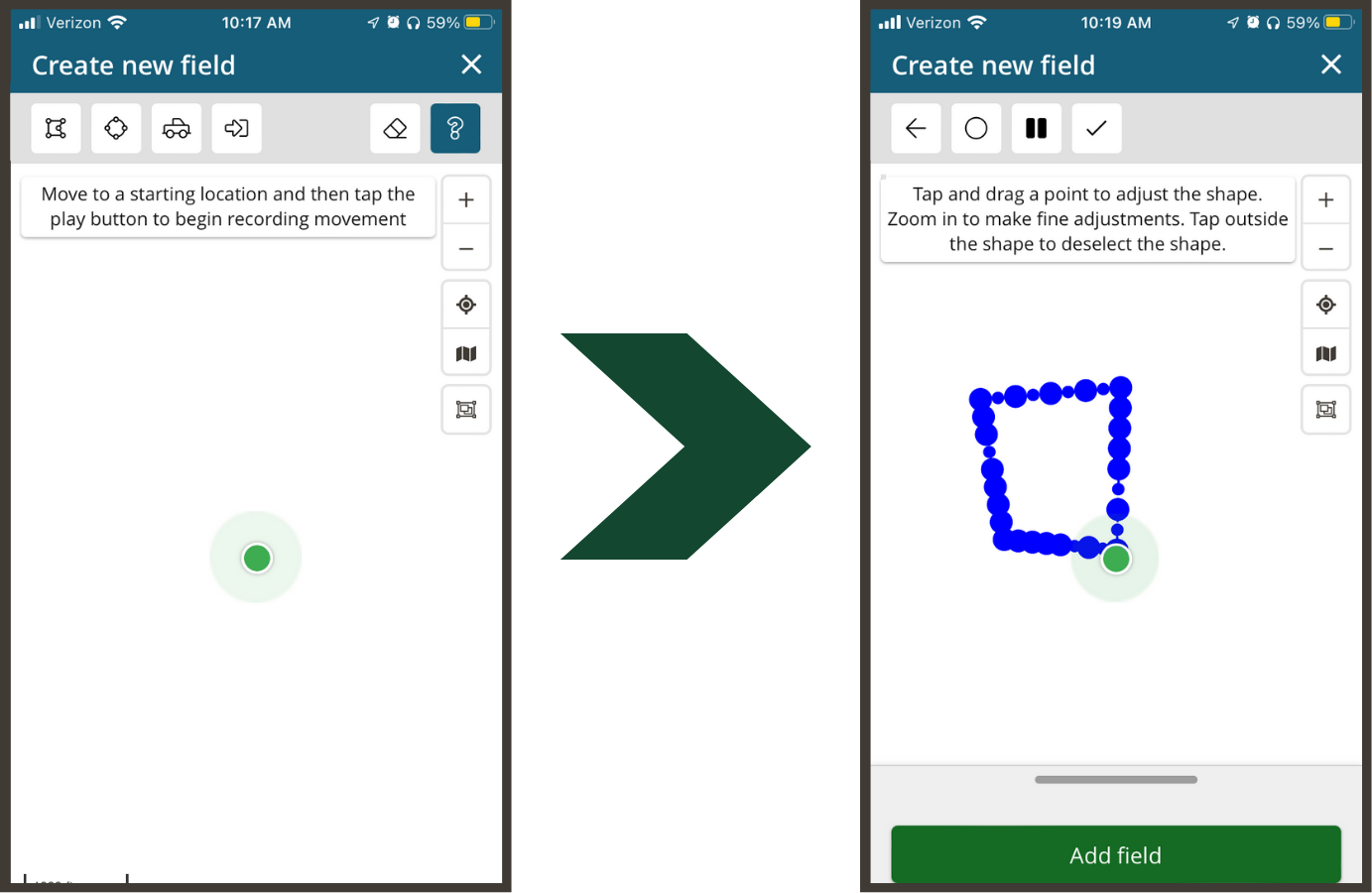

- NOTE: field boundaries can still be driven while you're in Offline mode. The only difference is that you won't be able to view any base layer imagery while you're drawing your map (pictured below).
Driving a boundary with multiple polygons
- Log in to your FarmQA account from the mobile app if you aren't already.
- Click the blue Add button at bottom right-hand corner of the screen, then select New field .
- Complete Steps 1-4 from the Driving a field boundary section.
- Next, drive to the point where you want to start your next polygon (pictured below).
- Press the Drive button, then select the Record button when you're ready to drive your next boundary.

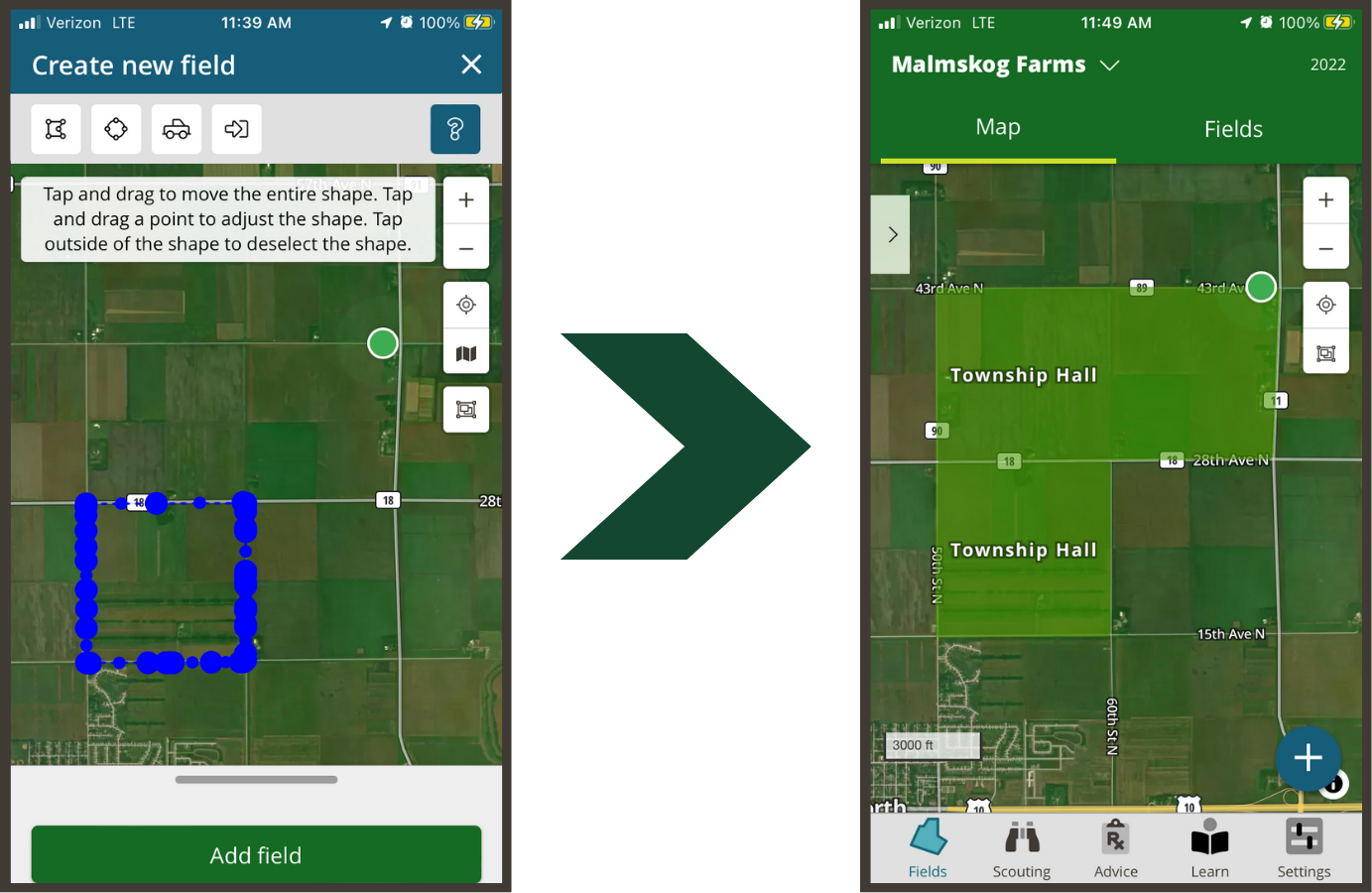

- Press the Pause button when you're done drawing your boundary, then fill out the appropriate information and click the Add field button to finish drawing your multi-polygon field (pictured below).
Driving a boundary with a hole in it
- Log in to your FarmQA account from the mobile app if you aren't already.
- Click the blue Add button at bottom right-hand corner of the screen, then select New field .
- Complete Steps 1-4 from the Driving a field boundary section.
- Next, drive to the point where you want to draw the hole in your field (pictured below).
- Press the Drive button, then select the Record button when you're ready to drive the hole in your boundary.

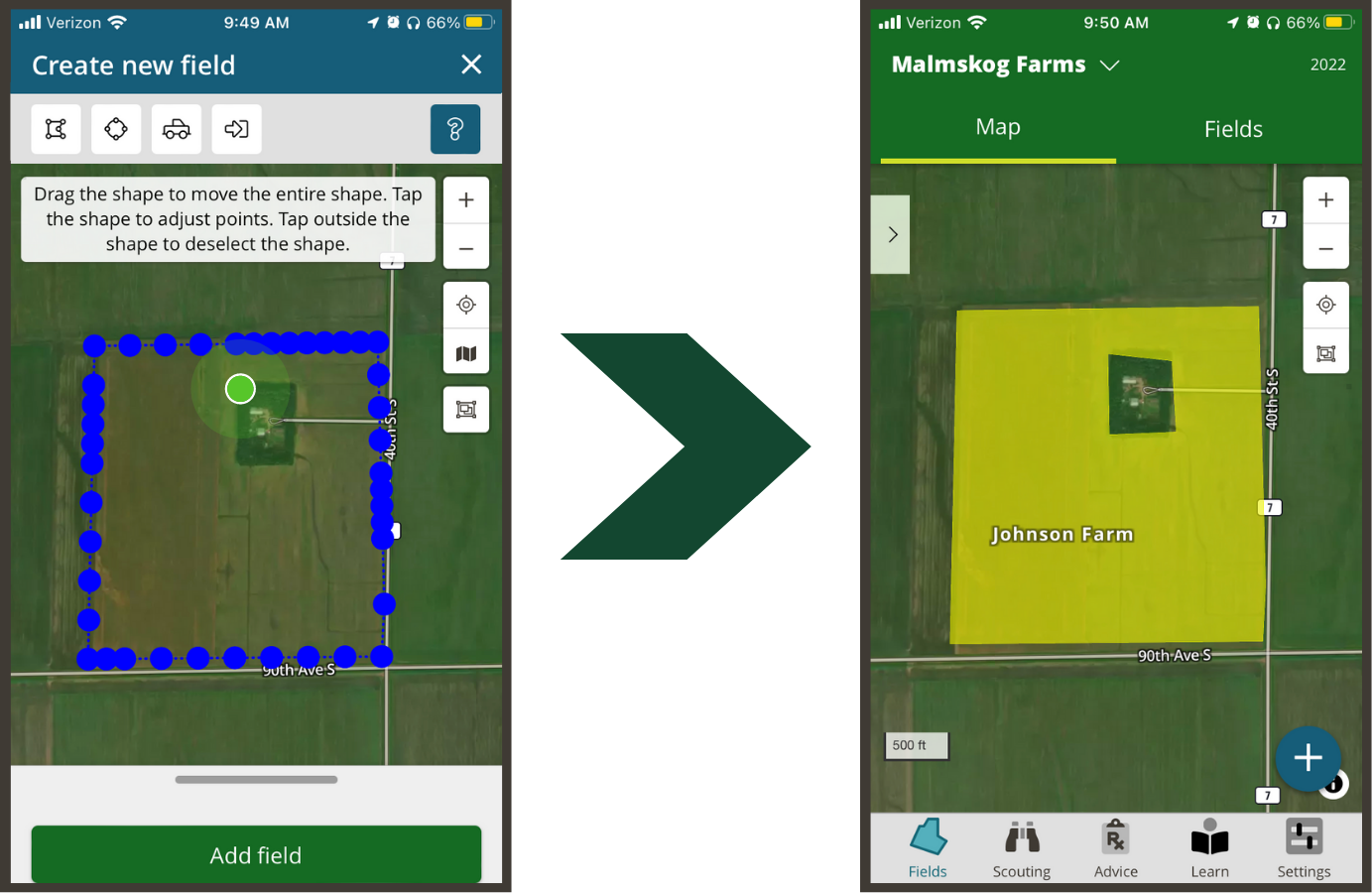

- Press the Pause button when you're done drawing your hole, then fill out the appropriate information and click the Add field button to finish drawing your field with a hole in it (pictured below).
Troubleshooting for driving field boundaries

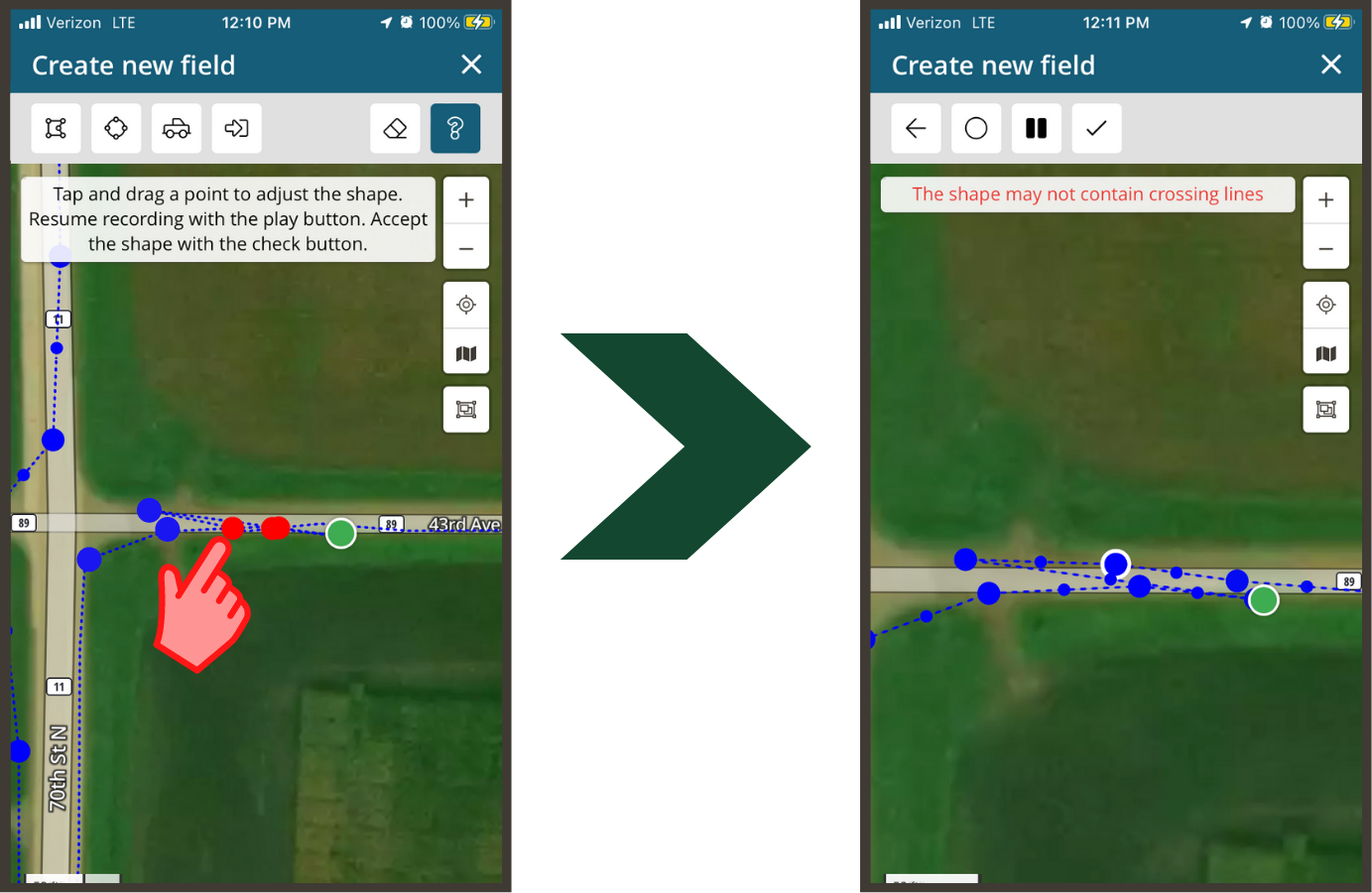

- You'll get a message that reads The shape may not contain any crossing lines if you lines in your shapefile cross each other. The points where this happens will be shown as red points in your shapefile. Simply drag these points away from each other, or click on the point then select the Erase button at the top right-hand corner of the screen to delete it (pictured below).
- If you get a message that says Invalid shape: Separate shapes may not overlap, your second polygon may be too close to the edge of your first polygon and might overlap with it. Move your second polygon away from your first to make sure that they don't overlap to save your field.
