Record a field's boundary by driving its edge with the mobile app — your GPS position traces the shape as you go. You can drive a field in one pass, add more pieces, or drive a hole, and you can set a GPS offset so the boundary lands where the field edge is rather than where your vehicle is.
Driving works offline too. The only difference is that base-map imagery doesn't show while you record.
| Action | Where | Who |
|---|---|---|
| Drive a field boundary | Mobile | Enterprise Administrator, Agronomist, Technician+ |
| Set a GPS offset | Mobile | Enterprise Administrator, Agronomist, Technician+ |
For every role and what it can do, see Breakdown of user permissions.

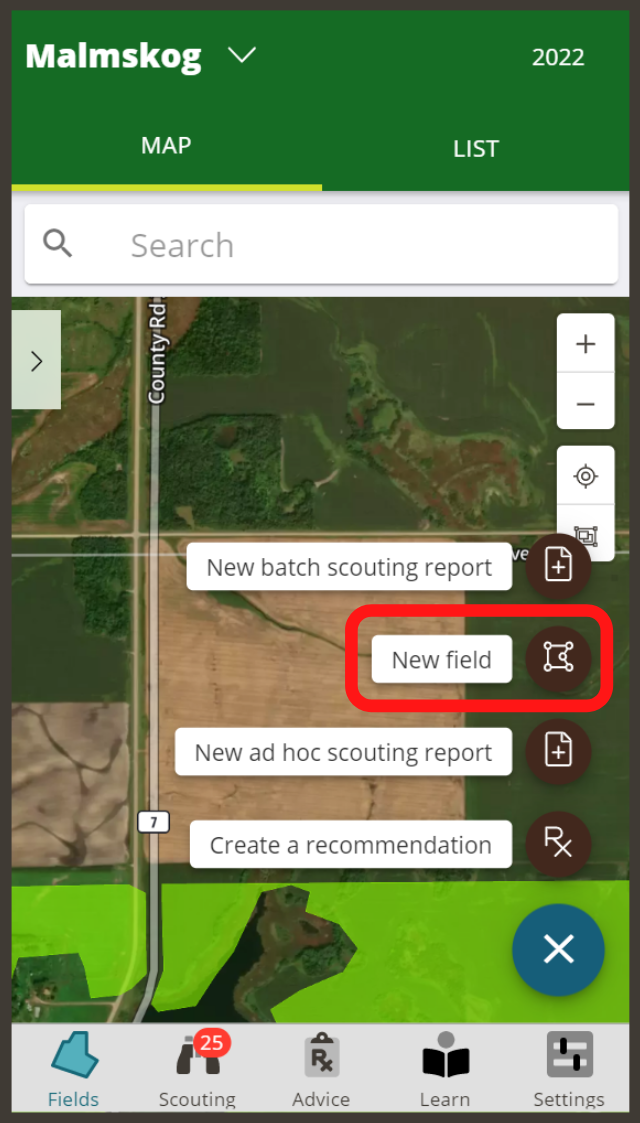

Start a new field
- On the Fields tab, select Add in the lower-right corner.
- Select New field.
- Select Drive.
Set a GPS offset
Optional. Do this before you start recording.
- Select Options.
- Use the slider to set the offset. The Options drawer shows the total offset and which direction it's applied.
- Select Exit at the top of the drawer.
Record the boundary
- Drive to your starting point.
- Select Record.
- Drive the edge of the field. A blue dashed line shows the boundary as you record it.
- Select Pause when you're done.
- If the boundary looks right, select the Check button at the bottom of the screen.
Add another piece or a hole
Do this after you select Check and before you save the field.
- Drive to where the next piece or the hole begins.
- Select Drive, then Record.
- Drive its edge, then select Pause.
Repeat for each additional piece or hole.

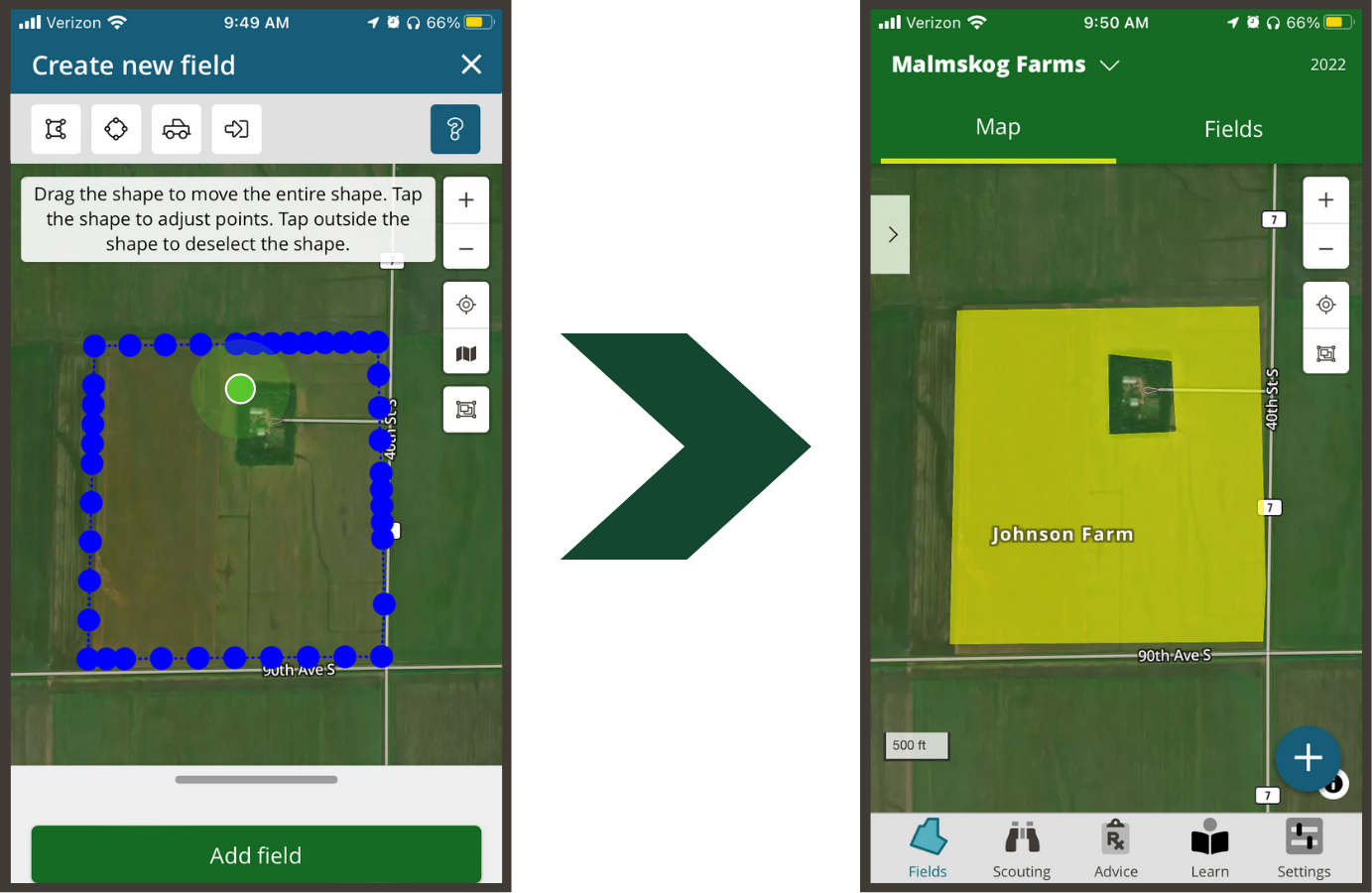

Save the field
- Open the Add field menu at the bottom of the screen.
- Enter the Field name and Crop.
- Select Add field. The field is added to your account.
If you see an error when you save, see Shape won't upload or save: geometry errors.
